Made from Zintra, the interchangeable, acoustically tuned 8” (209mm) quills hang from the mesh. Their lightweight materials, clever mounting system and simple mesh connectors make them easy to cut, effortless to hang and simple to configure. Wrap effortlessly around columns, with the ability to be customized on-site for hassle-free installation.

Designs that morph with a change in light or perspective, you can achieve multi-directional sound coverage and captivating visuals through contrasting or complementary mesh colours (choose from 12 powder coat colours).

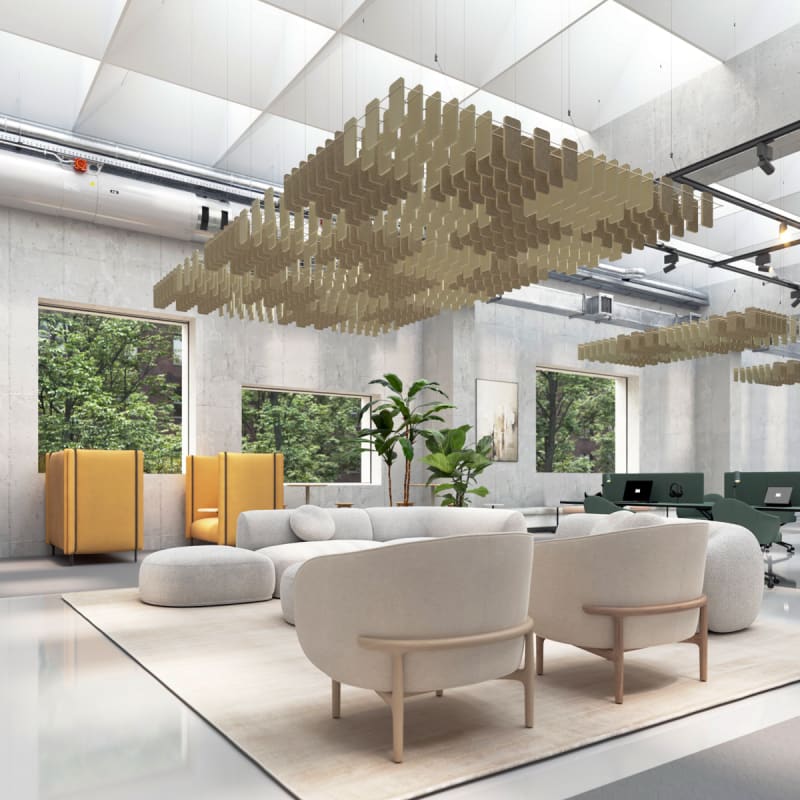

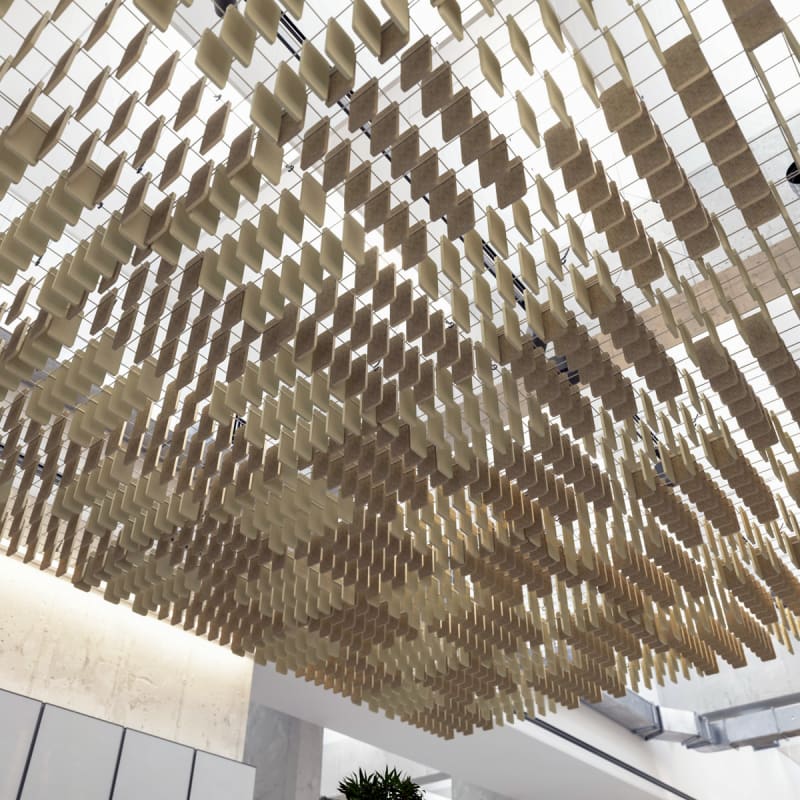

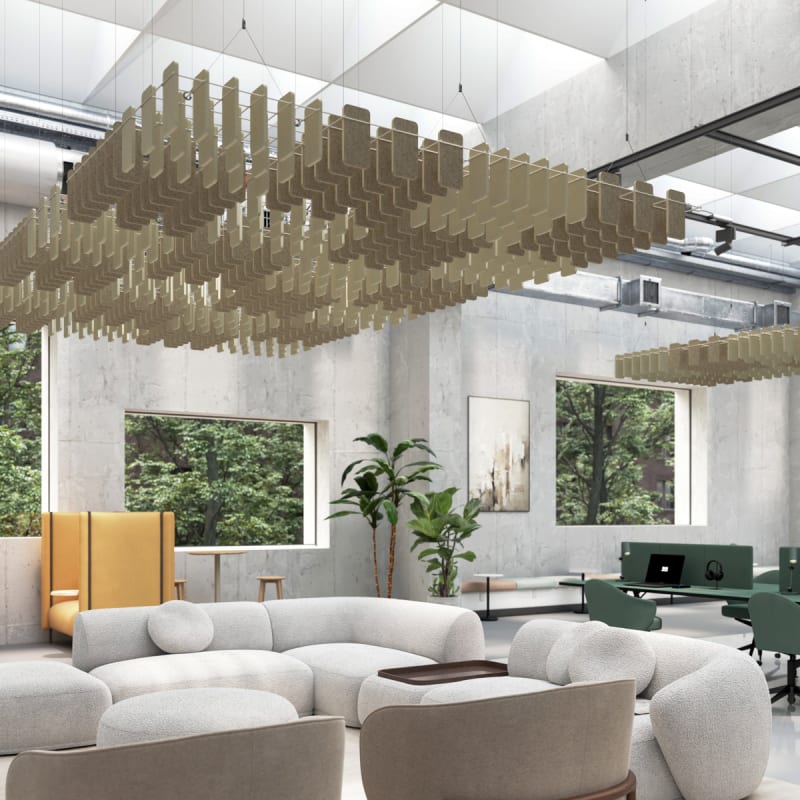

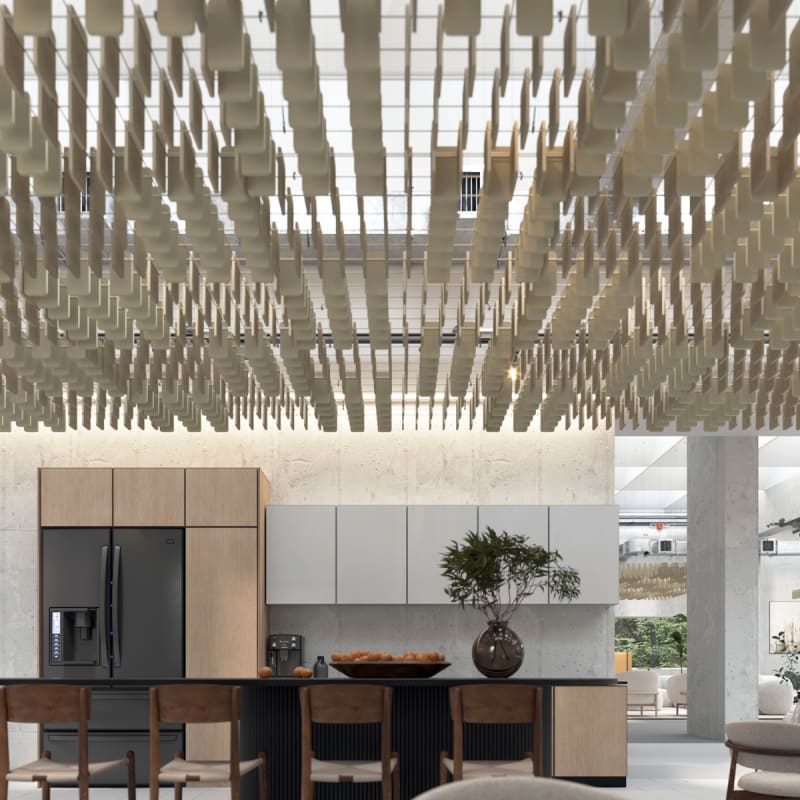

The Mesh Baffles hang from the ceiling using Y-Hook Cables, which efficiently distribute weight across the interconnected mesh, and minimise ceiling anchor points. These tactile marvels offer multi-directional coverage, enveloping sound from all angles and achieving an NRC values up to 1.0.

Sold as a system, you can choose from 6 preconfigured patterns. Each system includes 1 x Powder Coated Mesh, 6 x Y-Hook Cable Hangers, 5 x Wire Rope Clamps and enough quills for your selected design.

6 Preconfigured patterns. Modular in design. Easy to connect. Scalable. Easy install.

Checkered: 156 Quills | Herringbone: 288 Quills | Long Offset: 156 Quills | Offset: 288 Quills | Random: 219 Quills | Short Offset: 150 Quills

Individual Quill (baffle) 106mm (4") w x 209mm (8.2") h x 12mm (0.5") d

The Americas:

1219mm (48") w x 209mm (8.2") h x 2438mm (96") l

MESH ONLY:

1219mm (48") w x 10mm (0.4") h x 2438mm (96") l

Australia/Asia:

1200mm w x 209mm h x 2400mm l

MESH ONLY:

1200mm w x 10mm h x 2400mm l

40lb | 18kg

per system

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") -Density 2.4 kg /m² 0.5 lb/ft²

Zintra is made from 100% recyclable materials.

• 60% post-consumer recycled content from PET bottles.

• 35% pre-consumer recycled content from PET chips

• 5% polylactic acid (PLA)

ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Visit FAQ for more details.

Ships Flat Packed.

Assemble your Baffle System then suspend from the ceiling using hanging hardware supplied.

Recommended 2 People assembly

Go to the Technical Documents and download the Installation Guide for more details.

Mesh Baffles is a System:

• 1 x Powder Coated Mesh 1219mm (48") w x 2438mm (96") l OR

• 1 x Powder Coated Mesh 1200mm w x 2400mm l

• 6 x Y-Hook Cable Hangers

• Standard length 1520mm (5')

• 5 Wire Rope Clamps

• Enough quills to suit selected pattern

Go to Technical Documents and download the Installation Guide for more details.

Y-Hook | Cable Hangers | Wire Rope Clamps

1. Select Pattern

2. Select Zintra colour

3. Select Mesh Powder Coat colour

4. Repeat Steps 1-3 per System

1 x Zintra colour + 1 x Powder coat colour selection per system.

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

NRC 0.70 - 1.0

6 x Y-Hook Cable Hangers | Standard length 5' (1520mm)

5 Wire Rope Clamps

156 x Quills
