Zintra Etch Tiles, where acoustic absorption meets dynamic 3D design. Crafted using a 3mm v-groove, the angled blade creates contemporary, design-led patterns that add a touch of sophistication to any space. Whether you’re aiming for a progressive, modern interior or a welcoming atmosphere, Zintra Etch offers a range of subtle textures to suit your design needs.

Available in an extensive range of understated to statement Colours, Zintra Etch Tiles offer a cost-effective solution to enhance both sound quality and visual appeal in commercial, hospitality, and institutional interiors. Create calming environments with these versatile tiles, which can be seamlessly integrated with plain Zintra panels for a cohesive look.

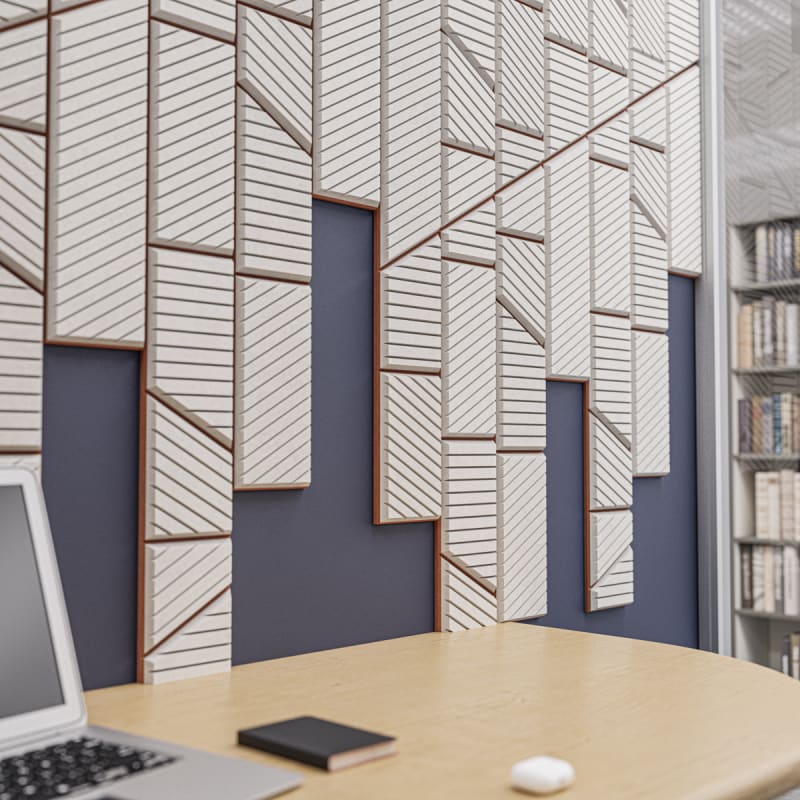

Install either wall to wall or as feature artwork to create an option suitable for any commercial, education or hospitality environment.

Link

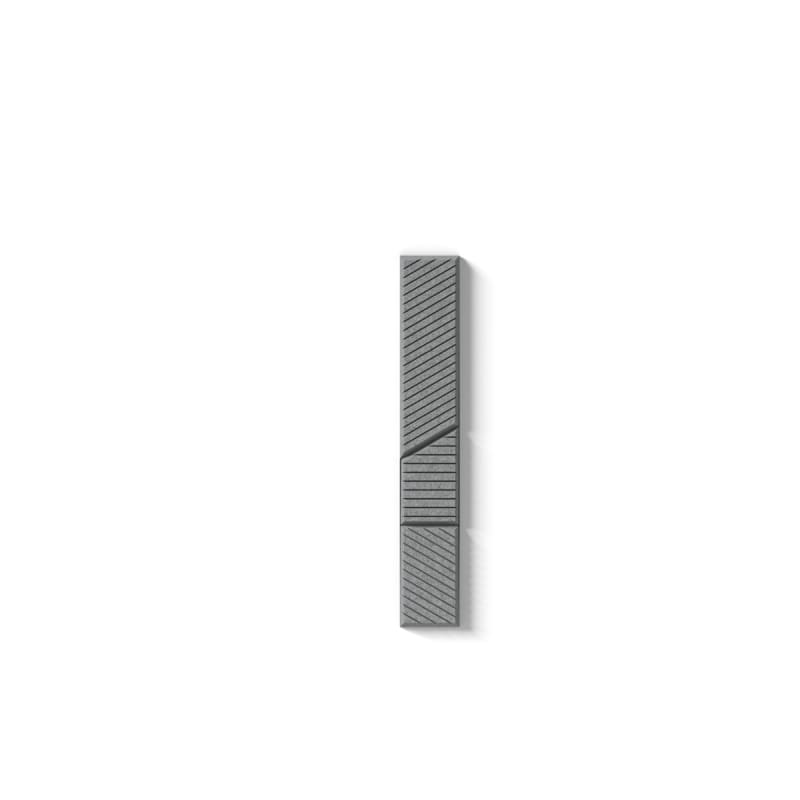

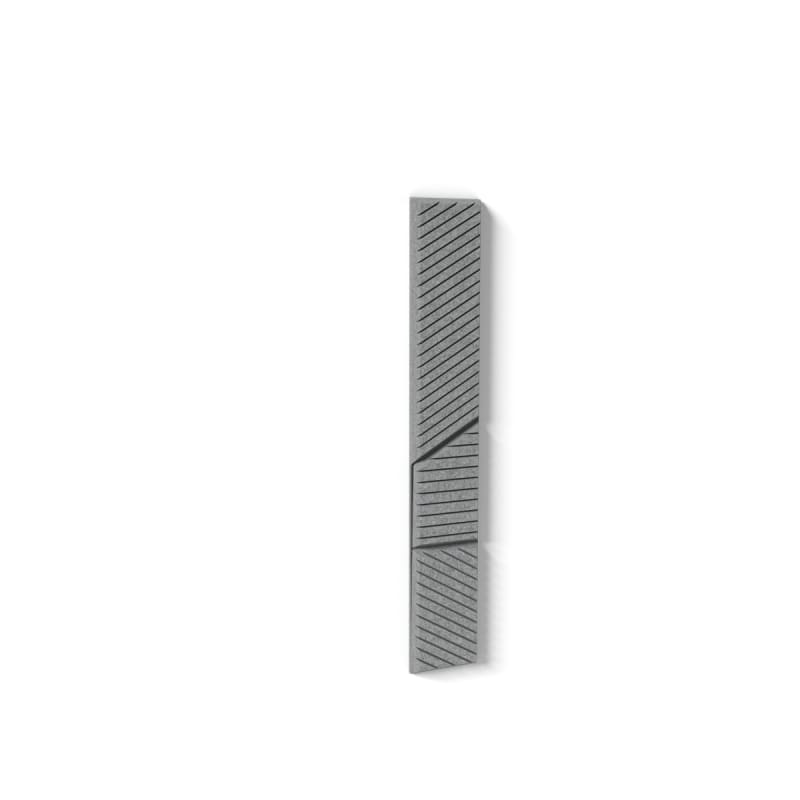

Creating a geometric masterpiece, intersecting angles and lines infuse your space with modern allure. Enhancing connectivity and flow, dual layer Link tiles offer a seamless integration within your design.

Available in 15 designs

Battleaxe* | Chevron* | Crossbar | Diamond* | Fluted | Herringbone* | Hexagon* | Hourglass* | Link | Louver | Plank* | Shadow Box | Square* | Trapezium* | Triangle*

* Notes designs available in both Plain and Etch.

Sold in sets.

Transform your space with style and acoustic efficiency.

Not suitable as a free-standing product.

Link: A | B

• 24 tiles / set, 3.36 m² (35.52 SF)

• 148mm (5.8") w x 927mm (36.5") h

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

• 12mm (1/2") -Density 2.4 kg /m² 0.5 lb/ft²

• 24mm (1" ) - Density 3.6 kg /m² 0.75 lb/ft²

Zintra is made from 100% recyclable materials.

• 60% post-consumer recycled content from PET bottles.

• 35% pre-consumer recycled content from PET chips

• 5% polylactic acid (PLA)

ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Visit FAQ for more details.

Ships Flat Packed.

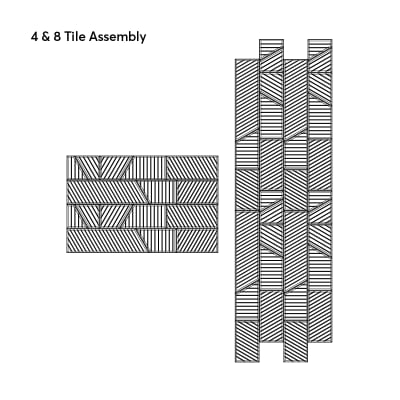

• Supplied as a set of individual tiles.

• Arrange as required.

Go to the Technical Documents and download the Installation Guide for more details.

• Link A | B24 tiles / set, 3.36 m² (35.52 SF)

Go to Technical Documents and download the Installation Guide for more details.

1. Select Design

2. Select Zintra Colour

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

• NRC 0.45-0.75 Directly Mounted

• Alpha-w Rating Directly Mounted 0.30-0.60
