Large spaces require acoustic solutions that match their scale. Zintra Beams collection address this need perfectly, offering substantial proportions that exude a sense of structure and architectural grandeur. Their modular design allows for a variety of configurations across a range of styles and sizes and includes connectors for effortless customization to suit any space.

There are 5 different geometric designs available: Open & Closed Rafter, Rectangular, Square and Parallel Beams, available in various sizes (please refer to the dimensions for design specific details). We even have a coffer available to suit open, closed and square designs for added acoustic comfort.

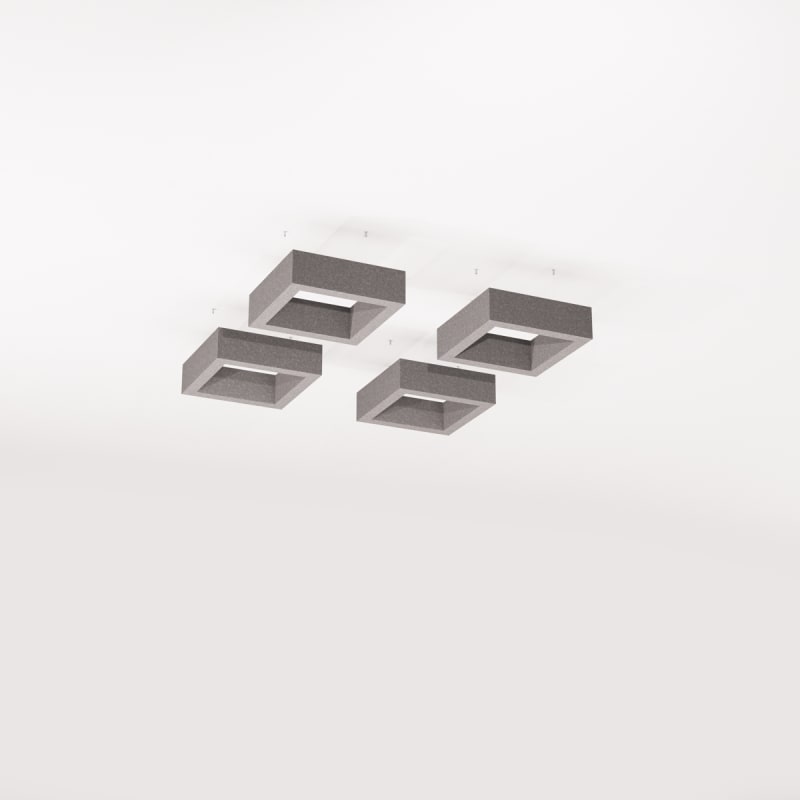

Square Beam

Offering a contemporary or traditional feel, Square Beams are lightweight and modular, available in sets of 4. Mix and match colours and heights for versatile design options. Additionally, optional coffer panels are available to further enhance its NRC rating.

Engineered for superior sound absorption, Zintra Beams function as porous absorbers across the entire frequency range. This significantly enhances the NRC rating, up to a maximum of 1.5.

Zintra Acoustic Panel - 100% Solution Dyed (Colour Through) Polyester

12mm (1/2") - Density 2.4 kg /m² 0.5 lb/ft²

Zintra is made from 100% recyclable materials.

• 60% post-consumer recycled content from PET bottles.

• 35% pre-consumer recycled content from PET chips

• 5% polylactic acid (PLA)

Square Beam

• 686mm (27") w x 203mm (8") h x 686mm (27") d
  Set of 4


ASTM-E84 – Class A classification
AS ISO 9705 – 2003 – Group 1 classification
EN-13501 – B-s2-d0 classification

Flat Pack – Details per design:

Open Rafter

• 1 x Kit of chosen size including: Clear 24mm (1") Beams Clip

• 5 x 5 =144 | 4 x 5 =122 | 3 x 5 =100 | 2 x 5 =78 | 1 x 5 =56 (Clips)

Closed Rafter

• 1 x Kit of chosen size including: Clear 24mm (1") Beams Clip

• 5 x 5 =104 | 4 x 5 =86 | 3 x 5 =68 | 2 x 5 =48 | 1 x 5 =28 (Clips)

Parallel Beam

• 1 x Kit including: Clear 24mm (1") Beams Clip x 80

Rectangle Beam

• 1 x Kit including: Clear 24mm (1") Beams Clip x 20

Square Beam

• Set of 4

• 1 x Kit including: Clear 24mm (1") Beams Clip x 32

Coffers

• Set of 8 Coffers

Ships Flat Pack

• Assembly Required.

• Cable Suspension OR Unistrut. Refer preferred installation method Install Guide

Go to the Technical Documents and download the Installation Guide for more details.

Go to Technical Documents and download the Installation Guide for more details.

Vacuum to remove dust.

Dab Zintra with a damp clean cloth and mild solution of liquid detergent and warm water. Repeat using only clean water, then pat dry with a lint free cloth.

For difficult stains, use a solution of household bleach (10% bleach / 90% water). To remove the bleach, repeat using a clean, water dampened cloth, then pat dry.

Always test in an inconspicuous area first and if you don't see the expected results, contact us.

Visit FAQ for more details.

The Zintra Acoustic Solutions range is customisable to your project. Please get in touch with your local contact for details.

• NRC 1.0

• NRC 1.5 With Coffers

1. Select design

2. Select Size

3. Select Zintra Colour
